Lyra gör fantastiskt välljudande MC-pickuper, designade av Jonathan Carr och tillverkade i Japan.

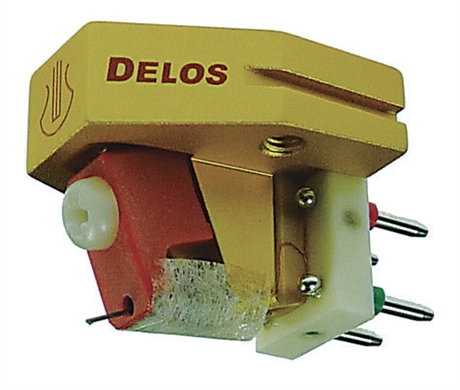

Delos är den senaste konstruktionen från Lyra. Delos är ett klart steg upp från Dorian som ger ännu mer av allt. Måste höras!
Delos passar mycket bra till VPI och Kuzmas skivspelare.
Finns i butiken för demo!
Tekniska specifikationer
Designer: Jonathan Carr
Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (primary build)
Type: Medium weight, medium compliance, low-impedance moving coil cartridge
Frequency range: 10Hz - 50kHz
Channel separation: 30dB or better at 1kHz
Cantilever system: Solid boron rod with Namiki microridge line-contact stylu (2.5um x 75um) and one-point suspension, directly mounted to cartridge body
Coil: 6N high-purity copper, 8.2ohms internal impedance, 9.5uH inductance
Output voltage: 0.6mV@5cm/sec. (CBS test record, other test records may alter results)
Compliance: Approx. 12 x 10 cm/dyne at 100Hz
Vertical tracking angle: 20 degrees
Cartridge body: One-piece machining from solid aluminum billet
Cartridge weight (without stylus cover): 7.3g
Recommended tracking force: 1.7g - 1.8g (1.75g preferred)
Recommended load directly into MC phono input: 91ohms - 47kohm (determine by listening, or follow detailed guidelines above)
Recommended load via step-up transformer: 5 - 15ohm (step-up transformer's output must be connected to 47kohm MM-level RIAA input)
Recommended tonearm: High-quality pivoted or linear (tangential) tone arm with rigid bearing(s), adjustable anti-skating force, preferably VTA adjustment
