Helt fantastisk brittisk högtalare 100% i traditionen av BBCs studiomonitorer. Påminner mycket om Harbeth, fast med tightare mer dynamisk bas, ännu mer levande och naturligt mellanregister och bättre rumsåtergivning. En av våra absoluta favorithögtalare!
Finns i butiken för demo!
Egenskaper
The LS5/5
The LS5/5 is a large three way monitor designed in 1967.
A 12 inch drive unit handles the low frequencies up to 400Hz. At this point, an 8 inch midrange takes over before handing over to the 1 inch soft dome tweeter at 3.5kHz. Overall, the frequency response is flat to within ±2dB from 40Hz to 20kHz.

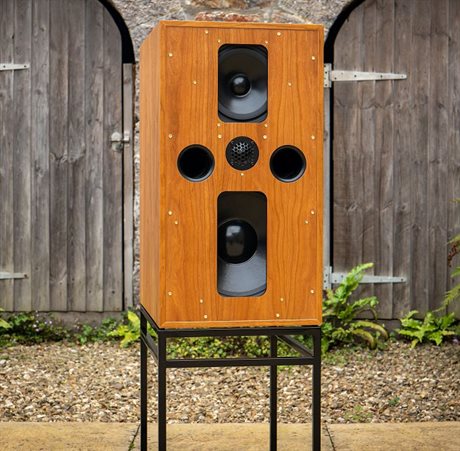

Straight away you'll notice that the bass and midrange drivers are mounted behind slots on the front panel. This feature is highly unusual today, but it works to control the off-axis response of the drive units which results in a smoother response through the crossover regions in typical listening environments. Not surprisingly, we get a lot of questions about this, so we have written an in-depth article explaining how the slots work.
Naturally, this is a BBC-style "thinwall" cabinet, where the relatively thin panels are mass-loaded to ensure that resonances are moved away from the critical mid-range region. Rockwool provides air damping. Hand-matched veneers are applied and finished to a very high standard. The grille is carefully designed to minimise diffraction effects and is held in place by concealed rare-earth magnets.
Specifications
System: 3 Way, reflex loading
Enclosure: Thin wall damped construction
Finish: Real wood veneer
Dimensions (w/h/d): 36cm by 65cm by 48cm
Weight: 35.5kg
Frequency response: 40Hz to 20kHz, ±2dB
Nominal impedance: 8Ω
Sensitivity: 88dB SPL (2.83V, 1m)
Maximum output: Over 104dB for a pair at 2m
Bass: 300mm long throw
Midrange: 200mm
Tweeter: 25mm soft dome tweeter
Recommended amplifier power: 50 to 250 watts unclipped programme
