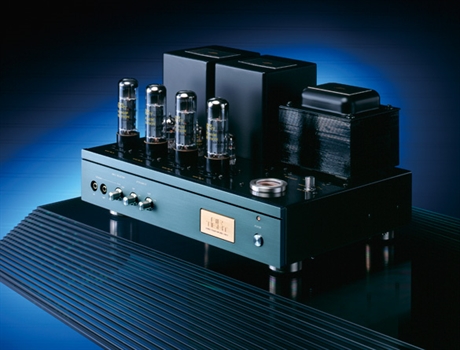

ATM-1S är ett legendariskt rörslutsteg från Japanska Airtight. Lämnar 2x36Watt i 8 Ohm.
Har varit i kontinuerlig produktion sedan mitten på 80-talet. Handbyggt i Japan och point-to-point-wired, d vs man använder inga kretskort.
Topptestat i en mängd tidningar, bland annat amerikanska Stereophile.
Vårt favorit-rörslutsteg i prisklassen upp till 100 000kr. Rekommenderas VARMT!
Finns i butiken för demo!
Egenskaper
Air Tight ATM-1S Stereo Amplifier features:
• Simple, elegant outer appearance composed of 8mm extruded aluminum front panel, milled aluminum knobs and name plate, and a 4-layer coated chassis with glossy, custom color finish
• Front input made to bypass shielded wires, and is coupled directly to first stage tube to ensure unimpaired reproduction of digital information
• All units tuned to optimum operational point with 100 hours aging after alignment, thus insuring absolutely reliable performance
• No printed circuit boards - 100% hand wiring throughout for superb sonic quality
• Hashimoto output transformers, acclaimed for their dynamic sonic quality
• Copper-plated chassis and oxygen-free copper wires
Valves employed: 6CA7 × 4, 12AU7 × 2, 12AX7 × 1
Rated output: 36W + 36W (8 ohms)
Input sensitivity: 1V
Input impedance: 100kohms
Features: input selector (2-ch), bias adjuster
Dimensions: 368(W) × 293(D) × 231(H)mm
Weight: 22kgs
