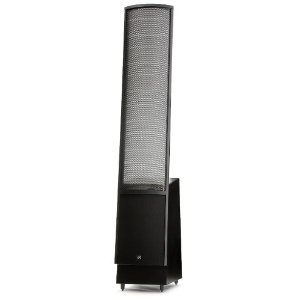

ElectroMotion är instegsmodellen i Martin Logans elektrostatsortiment. I ElectroMotion parar Martin Logan ihop sin "XStat" elektrostatpanel tillsammans med ett 8tums baselement som tar hand om de lägsta frekvenserna.
Egenskaper
The ElectroMotion ESL (EM-ESL) represents a brave new direction for electrostatic loudspeaker design. Featuring a full-sized 34-inch tall curvilinear XStat™ electrostatic transducer the new ESL performs more like a mini-flagship than an entry level audiophile speaker. Long time MartinLogan enthusiasts are sure to describe ElectroMotion ESL as the second-coming of the legendary Aerius electrostatic speaker which debuted in 1992 and went on to sell in record numbers. The new ESL, however, boasts 40 percent more radiating surface, a superbly integrated and authoritative bass performance, and a sensitivity rated at 91dB. In addition, the ESL is capable of being effortlessly powered by both receivers and high-end amplifiers alike.
To seamlessly blend audio output from the high- and mid-frequency electrostatic panel to the low-frequency woofer the ElectroMotion ESL features a proprietary Vojtko™ topology filter utilizing custom air core coil and low DCR steel laminate inductors, polyester film capacitors in series, and low DF electrolytic capacitors in parallel.
A precise 8-inch high-excursion, perfectly balanced, audiophile grade, doped fiber cone woofer was custom designed exclusively for The EM-ESL by MartinLogan's in-house engineering team. This woofer precisely optimizes cone suspension and magnetic flux field to produce high levels of bass output and simultaneous precise midrange. The custom woofer's rigid light-weight diaphragm eliminates cone flexure and maximizes response time to achieve remarkably low-distortion approaching that of MartinLogan's award-winning electrostatic panel design.
Specifikationer
Frequency Response: 42Hz - 22kHZ +/- 3dB
Dispersion: 30' x 34' (71cm) line source
Sensitivity: 91db/2.83 volts/meter
Nominal Impedance: 6Ohms, 1,6 @ 20kHz
Recommended Amplifier Power: 20-300 Watts per channel
Crossover Frequency: 500Hz
High Frequency Transducer: XStat CLS electrostatic transducer
Panel dimensons: 86cm x 22cm
Radiating Area: 1,886 cm2
Low Frequency Driver: 8 tum paper cone, bass reflex
Weight: 16.1kg/st
Overal Dimensions: 132,3cm x 22,9cm x 41,4 cm
Läs mer på Martin Logans egna hemsida:
Martin Logan
