P-300 är ett slutsteg på 2x150Watt i 8Ohm i ren klass A.
Egenskaper
The Aavik P-300 features a unique 150 W efficient Class A, non-switching output section where the bipolar output devices never stop conducting current. This means that the amplifier circuitry never has to deal with residuals such as switching spikes and device latchings.
The Aavik P-300 has an ultra short and simple signal circuit design, where all gain and feedback is performed by a single transistor pair. This short signal path gives the Aavik P-300 a unique gain structure with extremely low distortion and a more than 90-degree phase margin for absolute amplifier stability.
The Aavik P-300 has four 600 W power factor corrected resonant mode power supplies. The in total 2400 W power supply combined with the extremely large electrolytic power banks allow the Aavik P-300 to deliver peak currents in excess of 80 A.

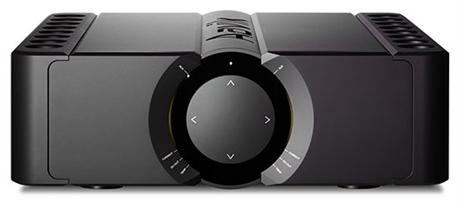

The Aavik P-300 design is deeply rooted in the Scandinavian design tradition, with simplistic functionality and minimalistic looks. It is made from machined solid bars of anodized aluminum, which gives it a stunning matte dark gunmetal finish. Internally we use copper elements in order to prevent chassis hysteresis loops from forming. The large curved circular rocker switch centered on the front is used to toggle between inputs and switching the Aavik P-300 amplifier on and off.
Specifikationer
Inputs: 2 XLR, 2 RCA
Input impedance: 11kΩ (XLR), 12kΩ (RCA)
Outputs: 1 set copper binding posts
Power rating:
Power rating 8Ω: 150W, 0.01% THD
Power rating 4Ω: 300W, 0.01% THD
Frequency response: 0.1 Hz to 150 kHz
Gain: 28 dB
Distortion: <0.005% 10W, 1kHz, 8Ω
Output impedance: <0.001Ω
Damping factor (8Ω load): >8000
Power consumption:
Standby = 0,5W
Idle = less than 100W
Weight: 35 kg
Dimensions: 440 x 480 x 133 mm (WxDxH)
