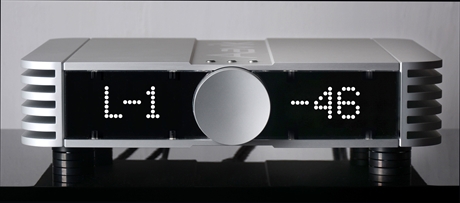

The Aavik 150 is a no compromise integrated amplifier with the ability to grow.
In standard configuration the Aavik U-150 amplifier has three line inputs
and a powerfull 300W output section.
The amplifier has an option of
adding DAC section (PCM-DSD and MQA) and a MC-phono stage to
the mix. Thus making the Aavik U-150 a full featured High-End Audio
system all in one beautiful box
The Aavik U-150 is developed on all the experiences gained by the development
and manufacture of the highly praised Aavik U-300 and as
thus, it carries most of the Sonic DNA from its famous larger sibling.
The sleek and sporty exterior design expression is very “Nordic”. With
very simple and intuitive controls and the clear and easy to see dot-matrix
displays the U-150 is very straight forward to operate.
Specifikationer
Output: 2 x 300W 8 ohm, 2 x 600W 4 ohm
Distortion (THD+N): <0.006% (1-100W, 1kHz, 8 ohm)
IMD: <0.002% (1-100W, 4 ohm)
TIM: <0.008% (1-100W, 4 ohm)
Line: 3 inputs
Input impedance: 10kOhm Gain adjustable in 5 2dB steps
Phono: Tillbehör
Floating RCA input (1 set) MC
Load resistance adjustable from 50 ohm to 10 kohm Frequency response +/-0.5dB (20Hz-20kHz)
Noise -90dB re 2V out Distortion <0.02% (20Hz-20kHz)
RIAA correction curve Gain: 60dB (adjustable to 70 dB in 5 x 2 dB steps)
Digital Dac Tillbehör:
2 RCA S/P-DIF inputs (32-192kHz, 24 bits)
2 TOSLINK S/P-DIF inputs (32-96kHz, 24 bits)
USB galvanically isolated, UAC2, asynchronous (PCM 32-196kHz, 24 bits, DSD64 and DSD128)
Volume control: 80 1dB steps
Power consumption: Standby: <0.5W Idle: <50W
Dimensions: 88 x 440 x 370mm
